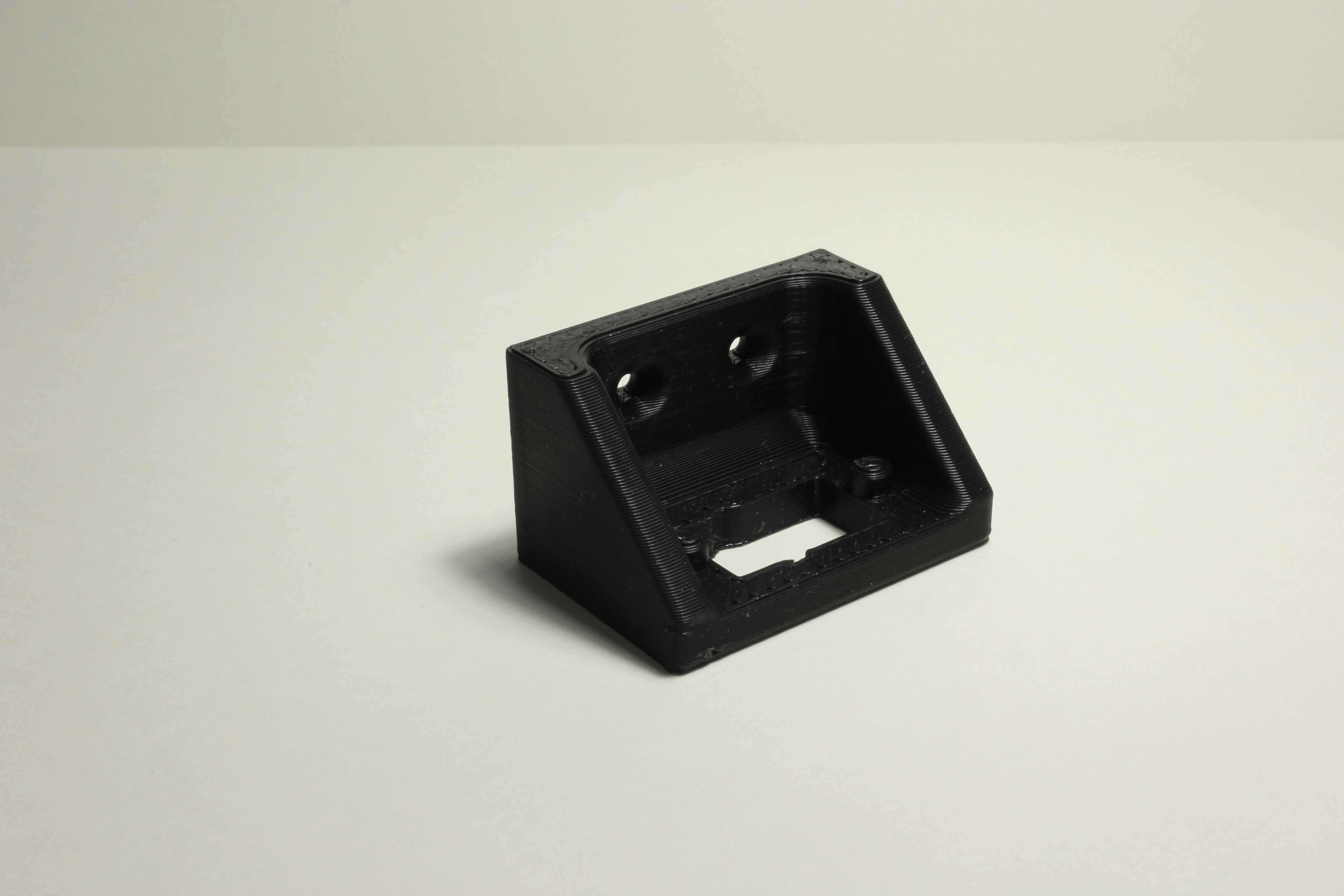

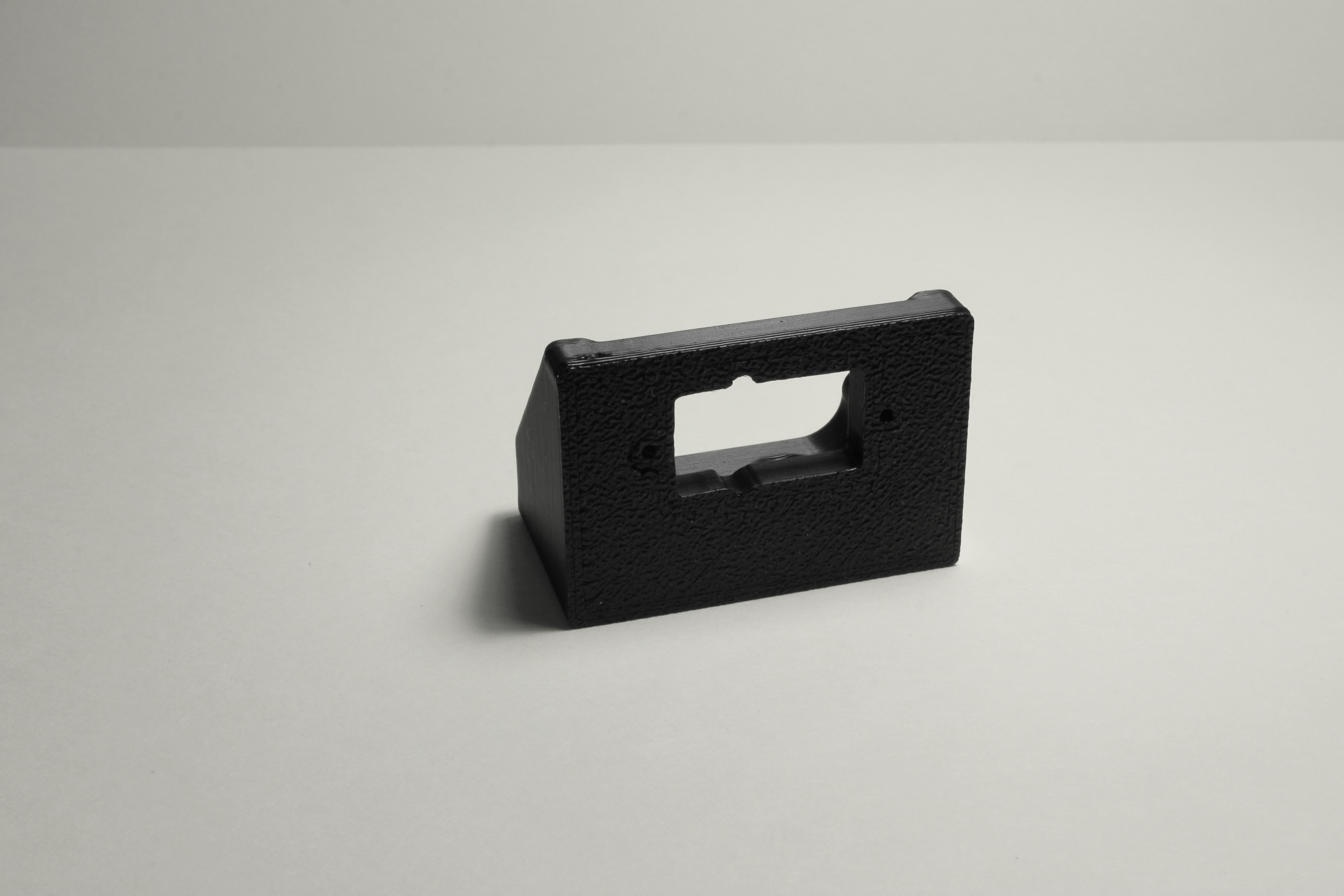

D-Type Bracket
£1.49
Do you still use the old D-types? If so do you want a reliable and sturdy bracket for mounting it, that doesn't flex or break when the mating half is pushed in and pulled out? Look no further...

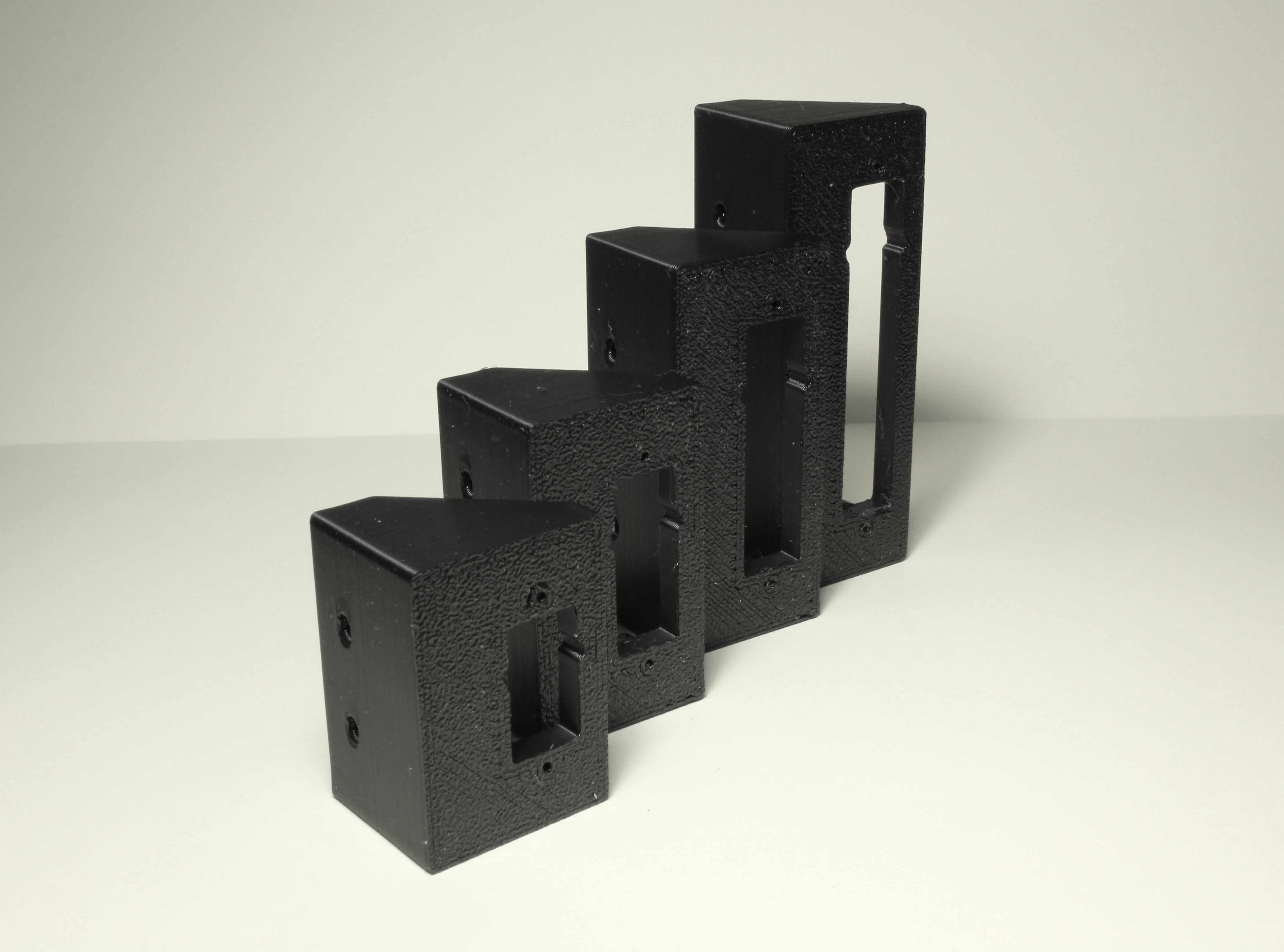

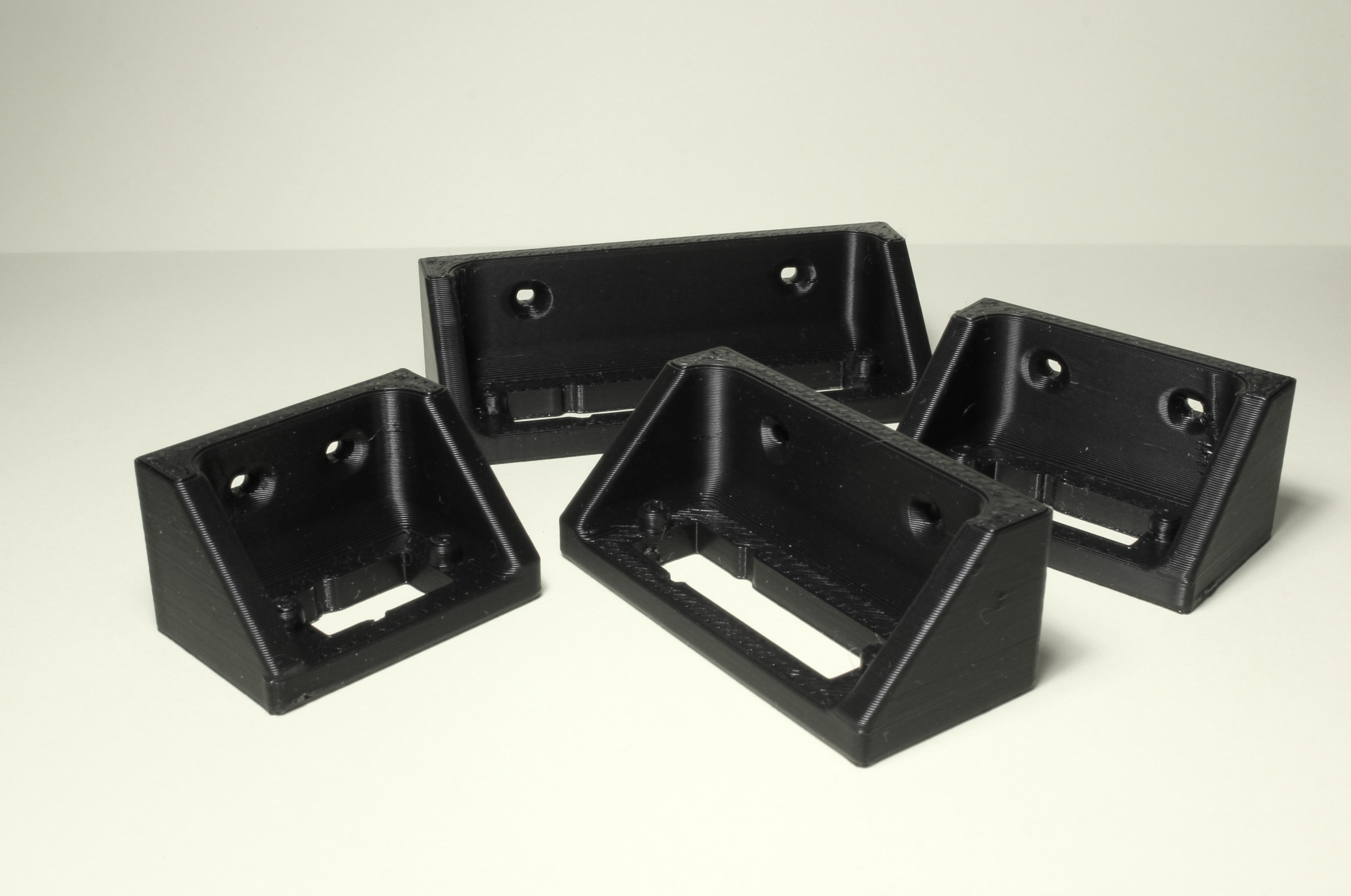

Four versions allow standard 9, 15, 25 and 37-way D-type connectors to be screwed into the mounting plate, and the bracket then secured with two screws
It is also possible to retrofit a wired connector by using the two designed in notches, just push the wired connector through at 90 degrees and then screw to the underside
Two pilot holes are built in to accept connector fixing screws
Pack contents
1x bracket to hold the chosen connector size
Fixings and D-type connector not supplied
Construction details
🔧 Printed in black PLA
🔧 Position your D-type in the slot and use two self tapping screws to fix in place (M3 x 5mm is an ideal size)
